Custom Access Control Keypads
Keypado manufactures custom access control keypads built for outdoor and indoor security applications. Our stainless steel and zinc alloy keypads feature IP65/IP67 waterproof sealing, IK08+ vandal resistance, and 10+ million keystroke durability. Supporting Wiegand 26/34-bit, OSDP, and custom interfaces, these keypads integrate seamlessly with access control systems for commercial buildings, gated communities, industrial facilities, and high-security installations worldwide.
Get Custom Quote
Key Features & Benefits
Secure Entry Starts Here. Access Control Keypads Built for Any Environment.
IP65/IP67 Waterproof Rating

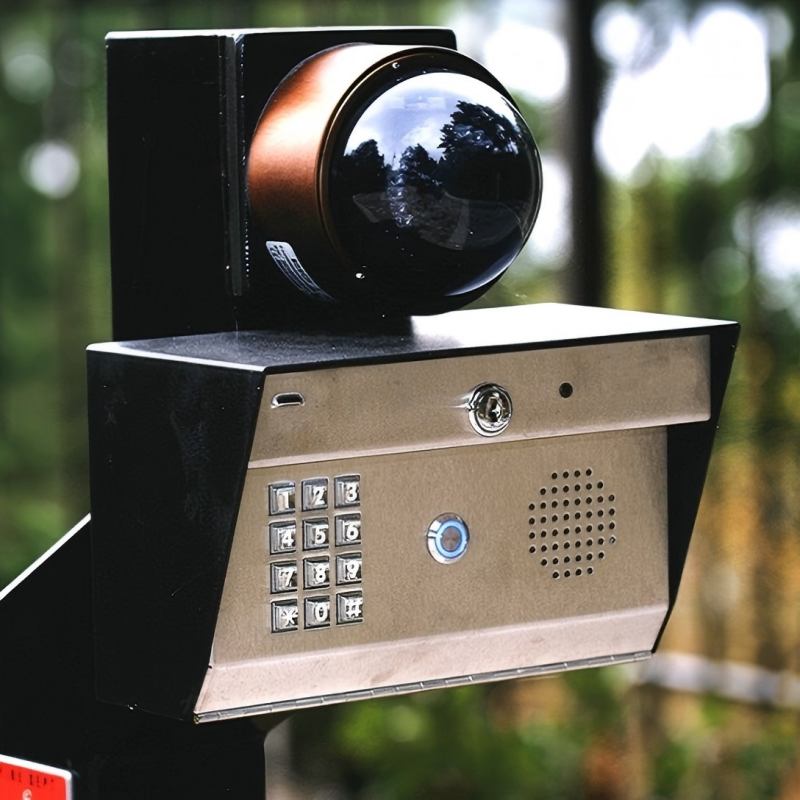

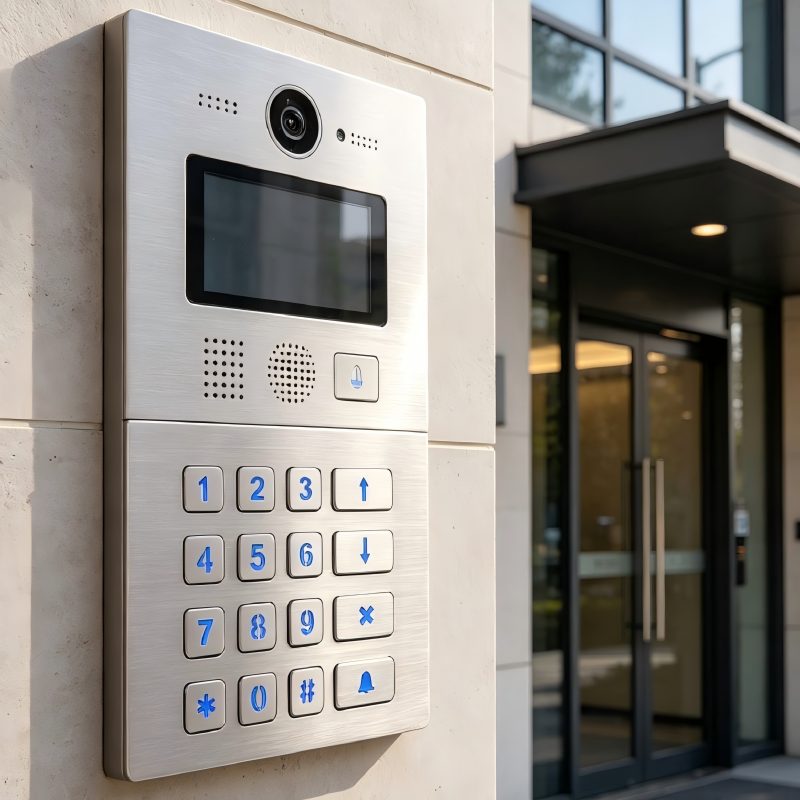

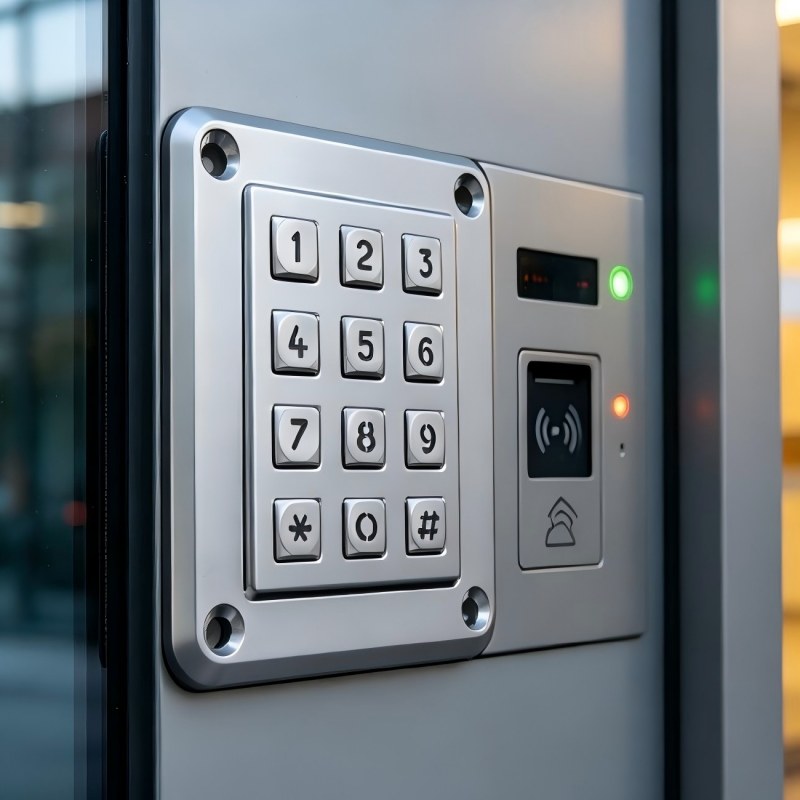

Fully sealed construction withstands rain, snow, and washdown conditions for reliable operation in outdoor door entry and gate applications.
IK08+ Vandal-Resistant Housing
Stainless steel or zinc alloy die-cast construction resists impact, prying, and deliberate abuse in high-traffic public installations.
10+ Million Keystroke Lifespan
Industrial-grade metal dome or silicone rubber switches deliver exceptional durability and reduce maintenance costs and system downtime.
-40°C to +70°C Operating Range
Engineered for extreme temperature resilience from frozen building entrances to desert facility gates without performance degradation.
Wiegand, OSDP, and Custom Interfaces
Multiple communication protocols ensure seamless integration with leading access control panels and security management systems.

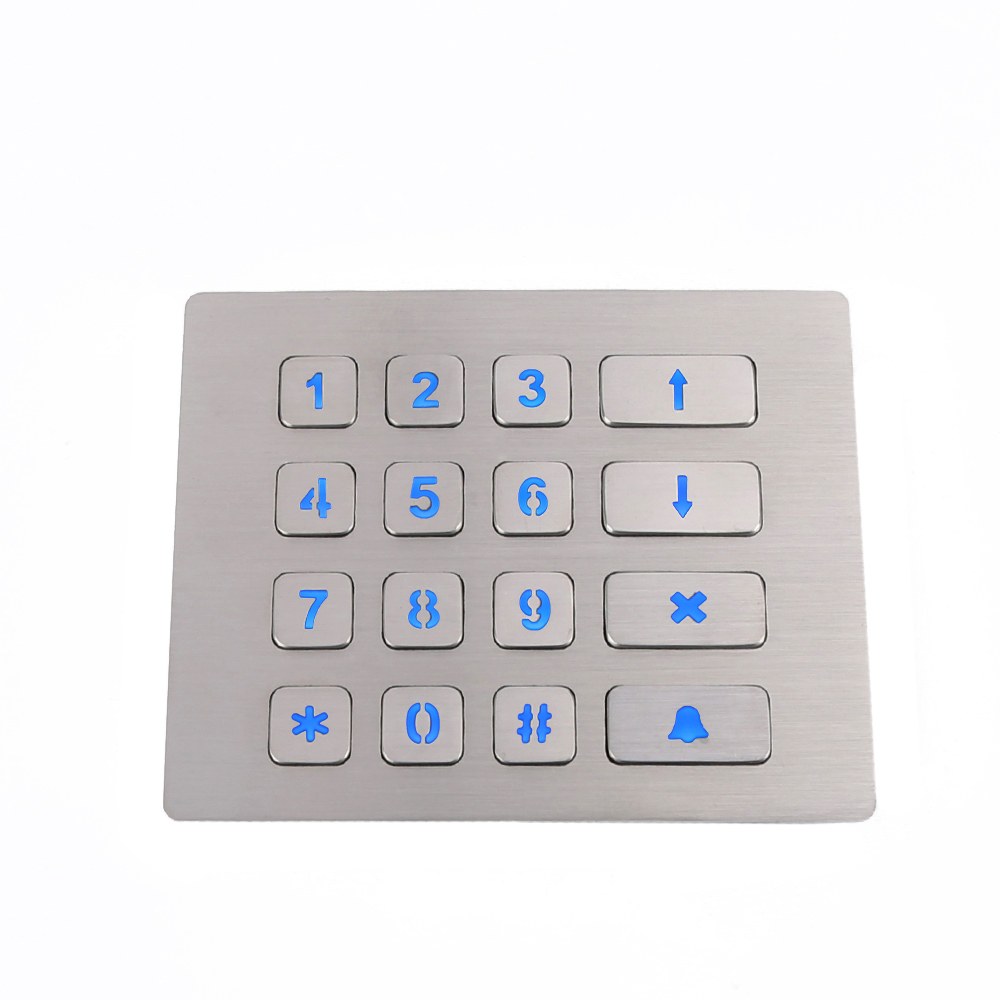

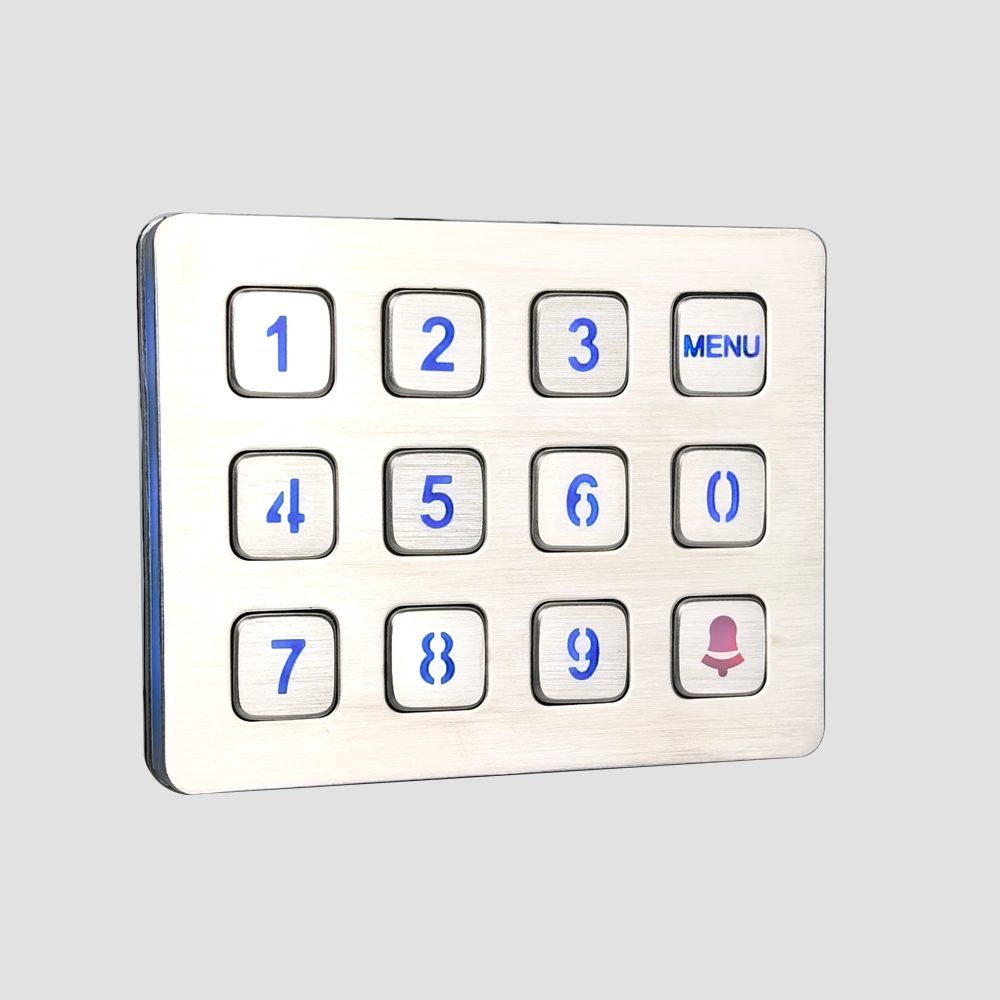

Backlit Keys for Low-Light Operation

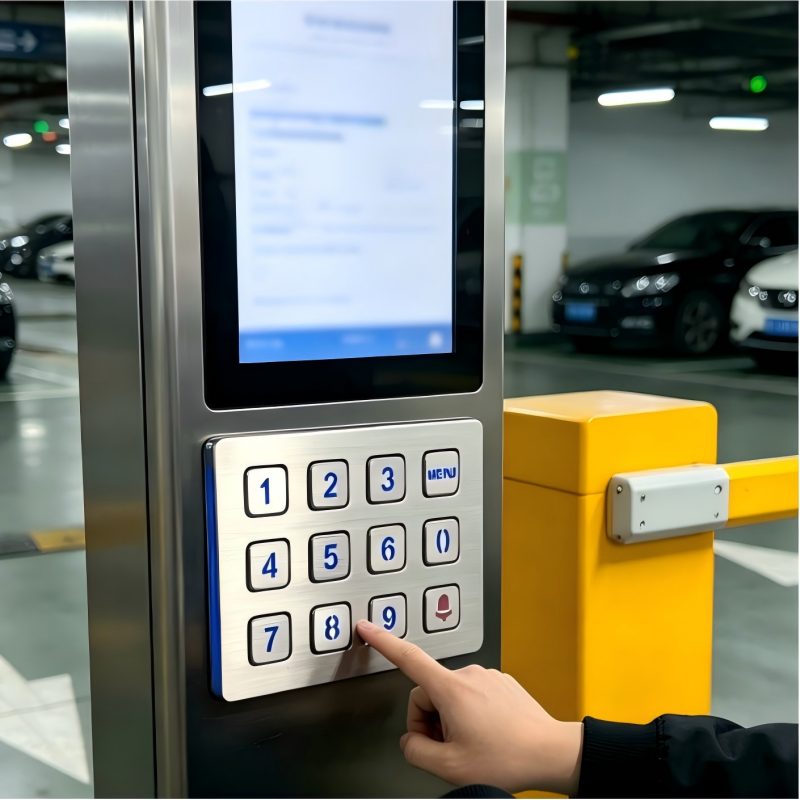

LED backlighting enables easy code entry in dimly lit stairwells, parking garages, and nighttime outdoor installations.
Full Custom Access Control Keypad Solutions
Every access control keypad from Keypado is engineered to your exact specifications, from communication protocol to environmental certifications.
Custom Key Layout & Legend
Material & Finish Selection
Backlighting & Visual Feedback
Sealing & Environmental Protection
Cable & Connector Customization
Custom Key Layout & Legend

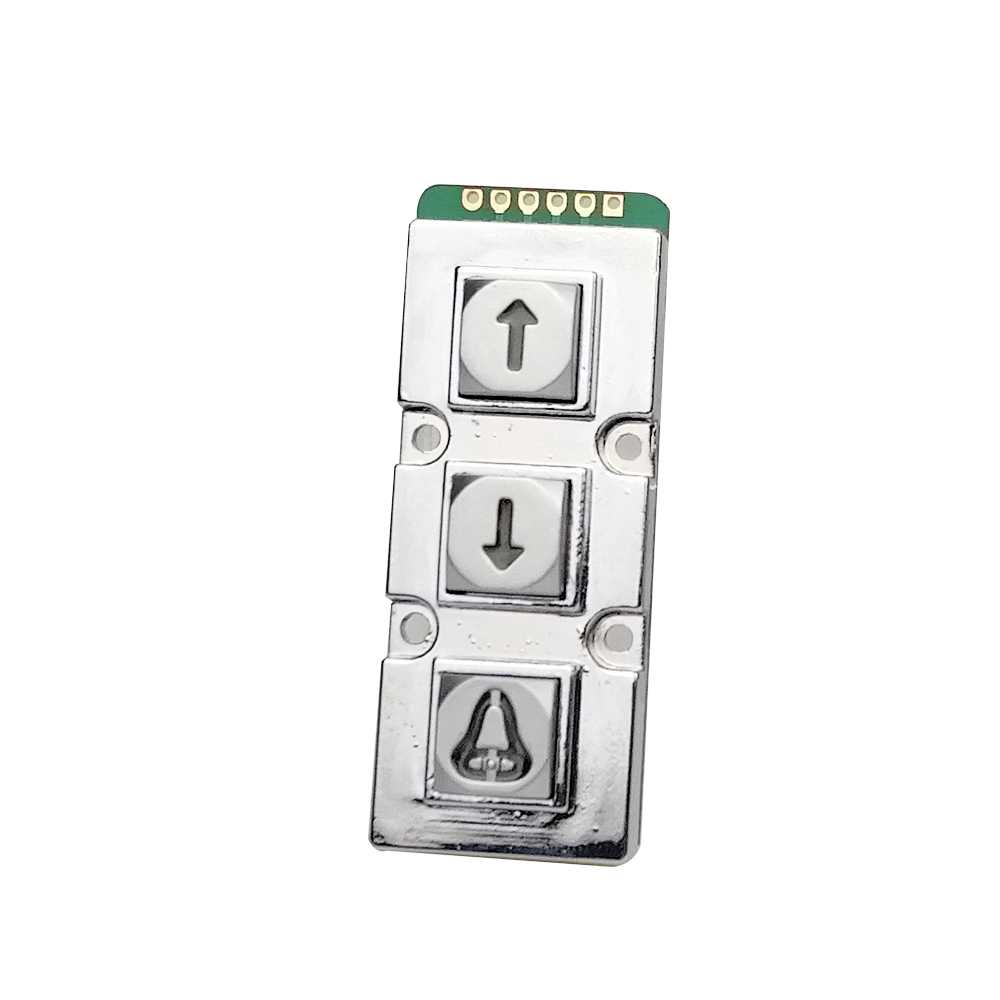

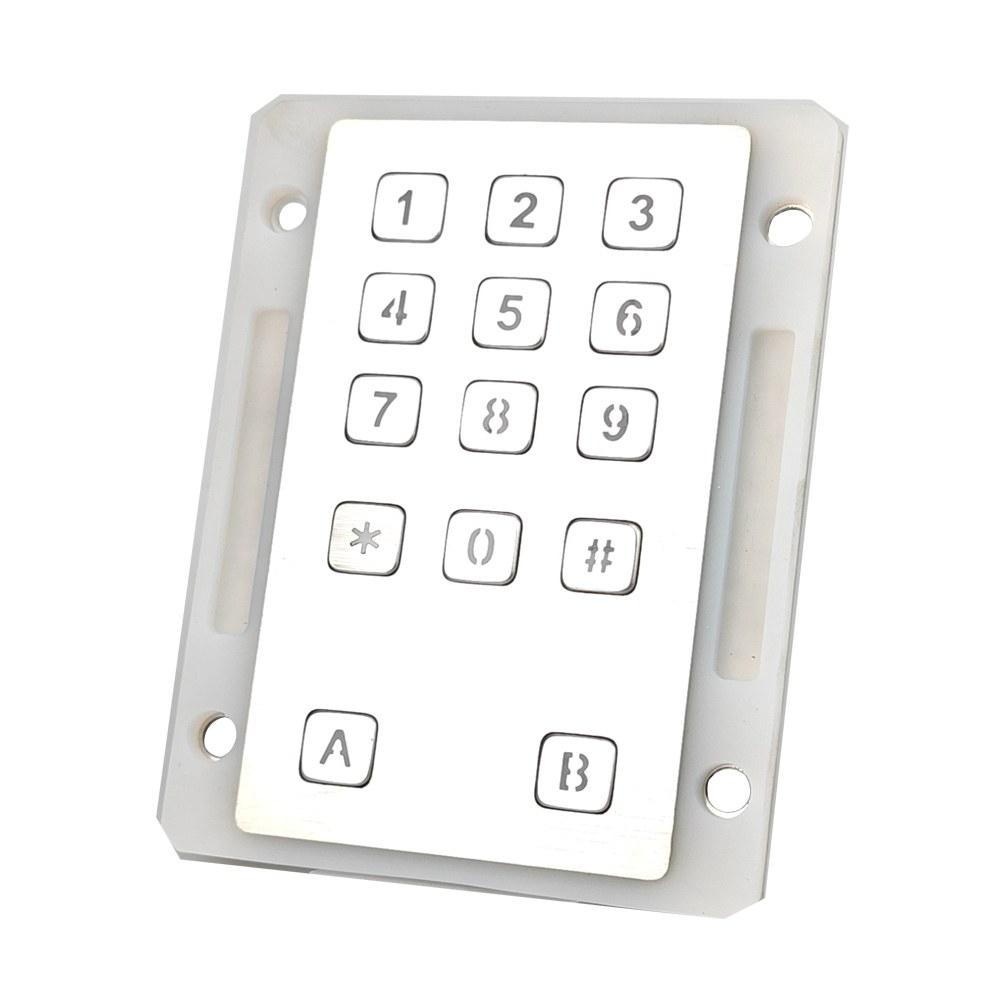

- Standard 3×4 numeric matrix with 12 keys or custom configurations from 4 to 20 keys with function keys, door release, or emergency buttons
- Laser-etched or screen-printed legends in English, Spanish, French, or custom symbols for lock/unlock, alarm, and intercom
- Tactile feedback options include metal dome for crisp tactile feel or silicone rubber for softer actuation
- Key travel from 0.4mm to 1.5mm with actuation force from 135g to 350g based on application requirements
Material & Finish Selection

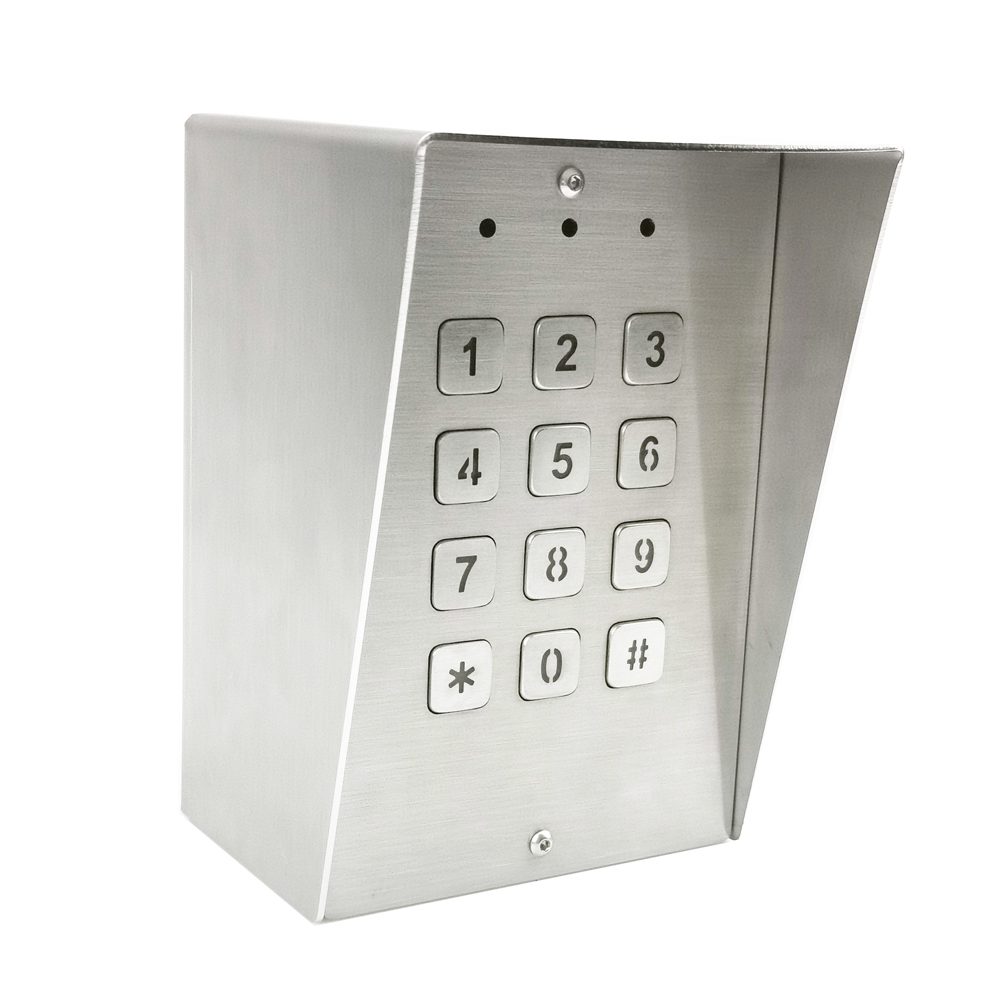

- Stainless Steel 304/316: Superior corrosion resistance for coastal, chemical, and high-humidity environments

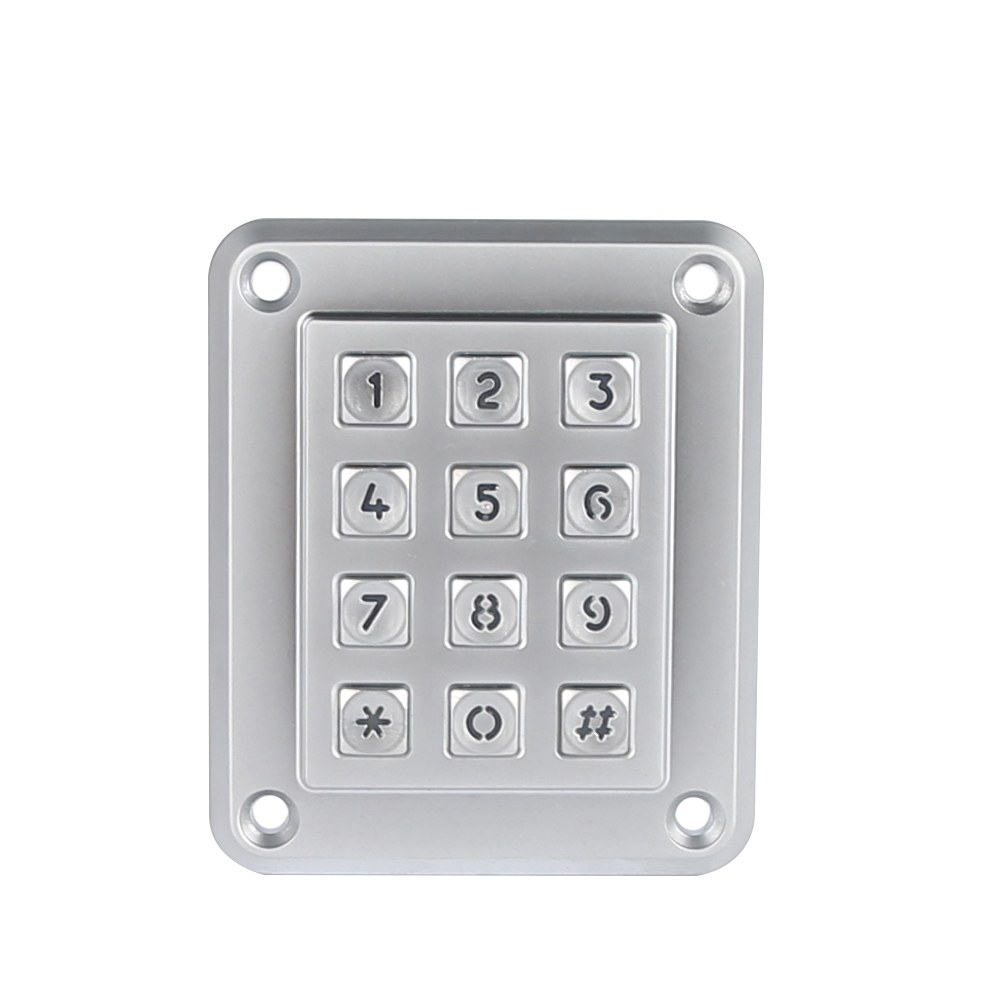

- Zinc Alloy Die-Cast: Cost-effective vandal resistance for commercial door entry and gated parking applications
- Aluminum Alloy: Lightweight yet durable for mobile security units and temporary installations
- Surface finishes include brushed satin, polished mirror, powder-coated in any RAL color, or PVD-coated for enhanced aesthetics
Backlighting & Visual Feedback

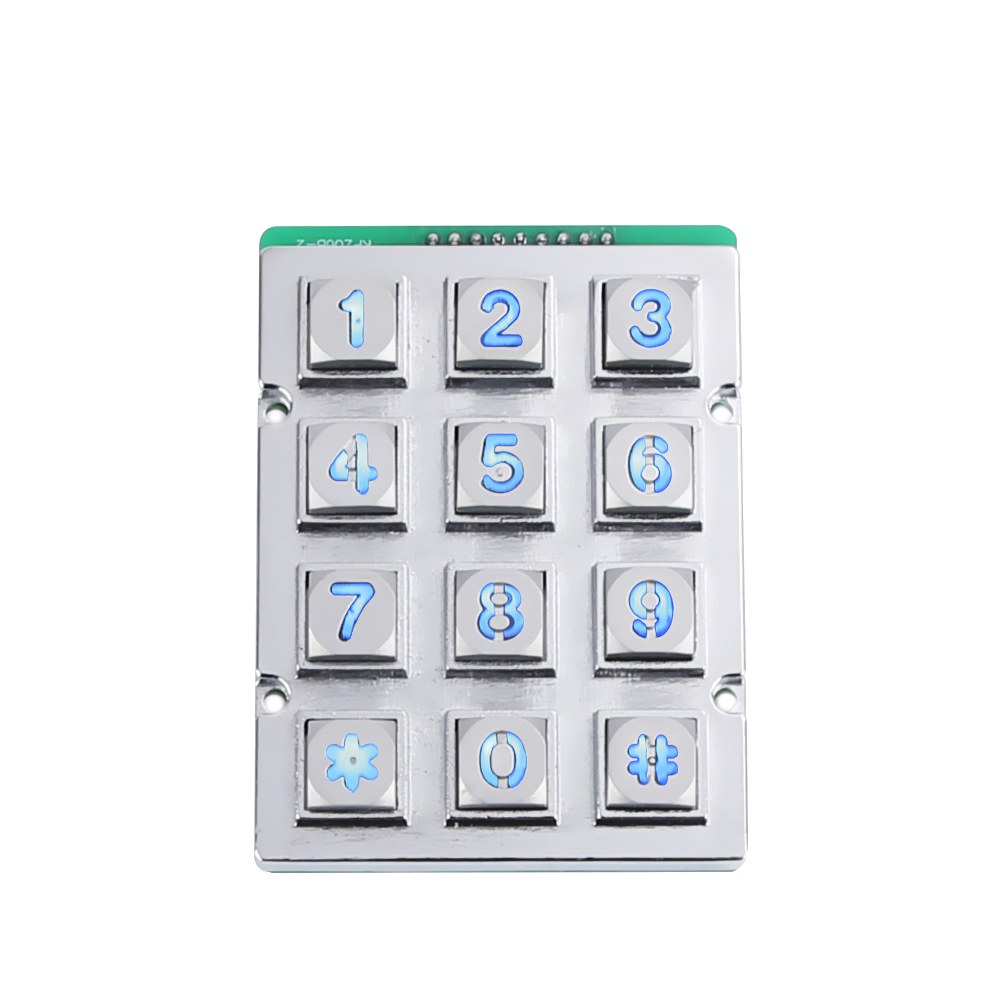

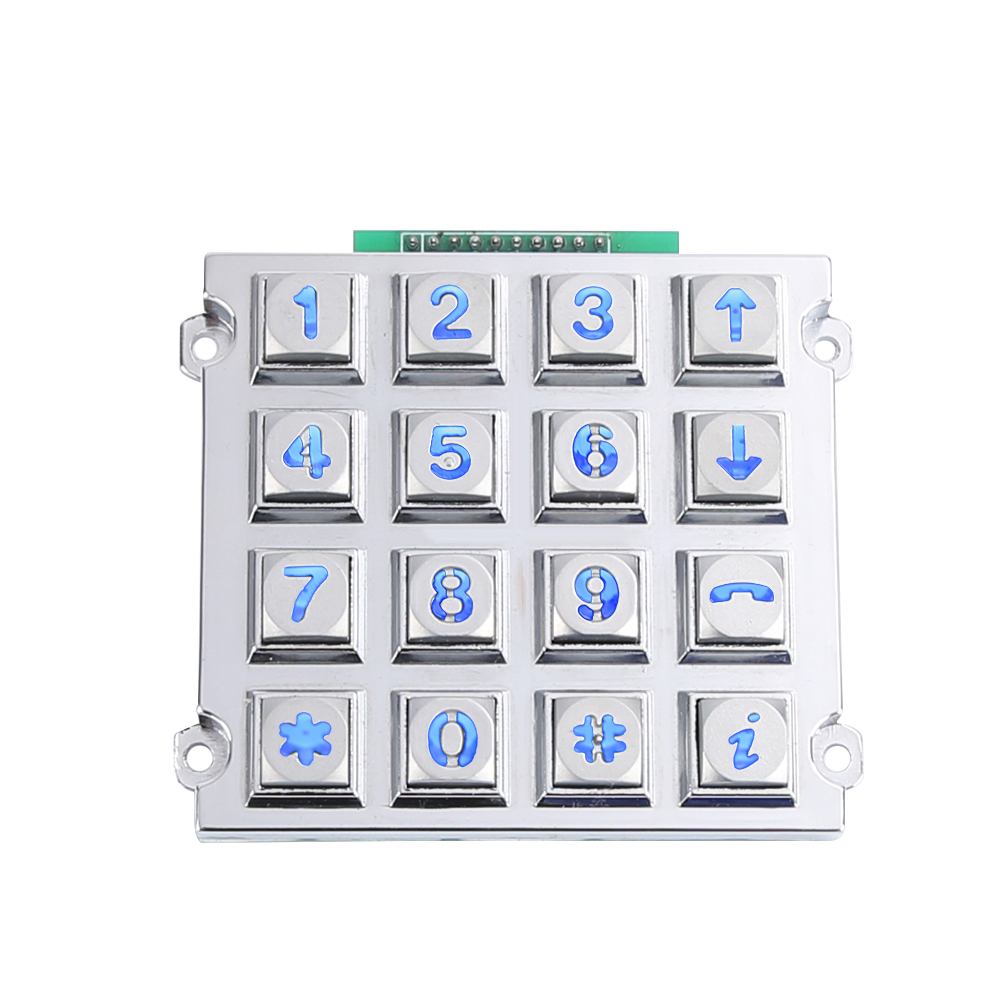

- Single-color LED backlighting in white, blue, green, or red with dual-color status indicators
- Programmable brightness levels from 0 to 100 percent via software control or hardware PWM dimming
- Icon backlighting for lock/unlock status, alarm condition, or access granted and denied feedback
- Optional audible feedback with integrated buzzer from 65 to 85 dB for keypress confirmation and error alerts
Sealing & Environmental Protection
- IP65 dust-tight and water jet resistant or IP67 temporary immersion sealing per IEC 60529
- NEMA 4X compliance for outdoor and washdown-rated installations
- UV-resistant silicone overlays with 400+ hours UVB exposure for direct sunlight applications
- Conformal coating on PCBs for humidity, salt spray, and chemical vapor protection
Cable & Connector Customization
- Cable length from 0.3m to 5m with straight or 90-degree exit options
- Connector types include 10-pin RJ45, 6-pin modular, terminal blocks, M12 circular, or flying leads
- Strain relief boots and armored cables for high-flex or pull-resistant installations
- RoHS-compliant and halogen-free cable materials for regulated industries and green building certifications
Keypado Applications
Why Keypado is Your Go-to Choice
Engineered for Extreme Security Environments
Keypado custom access control keypads are built with industrial-grade stainless steel SS304/SS316 or zinc alloy die-cast housings for superior resistance to impact, corrosion, and vandalism. The front panel achieves IP65 or IP67 sealing through precision-molded silicone gaskets and epoxy potting to protect internal electronics from dust, water jets, and temporary immersion. Mechanical key switches are rated for 10+ million actuations with tactile feedback while operating temperatures span -40°C to +70°C for reliable performance in frozen building entrances, coastal gate systems, and humid industrial facilities.
Precision Manufacturing & Quality Control
Each custom access control keypad undergoes a rigorous 8-stage production process including CNC machining or die-casting of metal housings, surface treatment with brushing, polishing, or powder coating, silicone keypad molding with tight tolerance control at ±0.05mm, PCB assembly with conformal coating, laser legend marking, IP sealing validation, and final functional testing. We employ automated optical inspection for solder joints, 100% key actuation testing, and salt spray testing per ASTM B117 for 48+ hours for corrosion resistance. All units are serialized for traceability and shipped with full inspection reports and material certifications.
Flexible Integration with Access Control Systems
Our custom access control keypads support multiple industry-standard communication protocols to match your security system architecture. Standard options include Wiegand 26-bit and 34-bit which are most common for access panels, OSDP or Open Supervised Device Protocol for encrypted communication, RS485 for multi-drop installations, and custom TTL/CMOS parallel interfaces for embedded controllers. Custom wiring harnesses with RJ45, M12 circular connectors, or terminal blocks are available for OEM integration. Supply voltage ranges from +5V DC to 12-24V DC which is typical for access control panels with reverse polarity and overcurrent protection built into the PCB design.
Application-Specific Engineering Support
Keypado’s engineering team works directly with security system integrators and OEMs to optimize keypad design for target applications. For outdoor building entrances we recommend IP67 sealing with UV-resistant silicone overlays and wide-temperature components with -40°C to +85°C storage. For high-security government facilities we provide OSDP-SC Secure Channel encryption, tamper switches, and EMI/RFI shielding. For industrial facilities and warehouses we specify IK08+ vandal ratings, chemical-resistant powder coatings, and conformal-coated PCBs for humidity protection.
Streamlined Custom Access Control Keypad Manufacturing
Keypado’s agile production workflow ensures your custom access control keypad moves from design to delivery in 4-5 weeks with full transparency and quality validation at every stage.
1. Requirements Analysis & DFM Review
Our engineering team conducts a detailed consultation to capture your application requirements including environmental conditions like temperature, humidity, and salt exposure, mounting constraints such as single-gang box, surface mount, or panel cutout, interface needs for Wiegand, OSDP, or RS485, and regulatory certifications including IP, NEMA, and UL294. We provide Design for Manufacturability feedback within 48 hours with suggestions for material selections, sealing strategies, and cost-saving optimizations without compromising performance. A 3D CAD model and preliminary BOM are shared for your approval before tooling begins.
2. Rapid Prototyping & Functional Validation
Once the design is approved we produce 3-5 functional prototypes using soft tooling or CNC-machined housings. Prototypes undergo in-house testing for key actuation force measured with digital force gauges, IP sealing with water jet and dust chamber tests per IEC 60529, and temperature cycling from -40°C to +70°C for 10 cycles. You receive prototype samples with a detailed test report allowing you to validate fit, feel, and integration with your access control panel. Design iterations are supported at no additional cost until the prototype meets your exact specifications.
3. Tooling & Pilot Production Run
For production orders we fabricate hard tooling for die-cast zinc alloy or injection-molded silicone components with typical tooling lead times of 10-15 days. A pilot run of 20-50 units is produced to validate the full manufacturing process including automated PCB assembly, keypad bonding, and IP sealing. Pilot units undergo extended reliability testing with 100,000-cycle keystroke endurance, salt spray corrosion for 48 hours at 5% NaCl, and vibration testing from 10-500Hz across 3 axes. Any process adjustments are made before full-scale production begins.
4. Mass Production & Final Quality Inspection
Full production runs from 100 to 10,000+ units are executed in our ISO 9001-certified facility with inline quality checkpoints. Every unit undergoes 100% functional testing with all keys actuated, backlighting verified, and communication protocol validated, IP sealing spot checks at 10% sampling rate, and visual inspection for cosmetic defects. Serialized labels with QR codes enable full traceability from raw materials to final shipment. A Certificate of Compliance and inspection report are included with each batch documenting IP test results, electrical specifications, and material certifications.
5. Packaging & Global Logistics
Finished custom access control keypads are individually wrapped in anti-static bags, cushioned with EPE foam, and packed in export-grade corrugated cartons. Custom packaging options include branded boxes, foam inserts for delicate backlighting, and palletized shipments for large orders. We coordinate with DHL, FedEx, or sea freight forwarders to deliver to your facility or end customers worldwide with typical transit times of 3-7 days for air or 25-35 days for sea. All shipments include commercial invoices, packing lists, and certificates of origin for customs clearance.
FAQs
Our standard MOQ for custom access control keypads is 50 units for most configurations, though we can accommodate prototype orders of 10-20 units at a slightly higher unit cost. For high-volume projects with 1,000+ units we offer tiered pricing with significant discounts. We recommend starting with a prototype batch to validate design and integration before committing to full production.
Yes, Keypado routinely manufactures access control keypads that comply with UL294 for North American access control equipment and EN50133 for European alarm and security systems. We can provide third-party test reports from accredited laboratories upon request. For government and high-security applications we also offer tamper switches, encryption modules, and full traceability documentation.
Absolutely. Our engineering team provides free technical support throughout your project lifecycle from initial concept to post-deployment troubleshooting. We offer CAD files in STEP and IGES formats, electrical schematics, and pinout diagrams for Wiegand, OSDP, and custom interfaces. If integration issues arise we can conduct remote diagnostics or arrange RMA for defective units. Long-term production support and component obsolescence management are also available.
Yes, Keypado specializes in application-specific customization. For outdoor gates and parking barriers we provide IP67 sealing, UV-resistant overlays, and wide-temperature components from -40°C to +85°C. For industrial doors and warehouses we specify IK08+ vandal ratings, chemical-resistant powder coatings, and conformal-coated PCBs for humidity protection. For high-security government facilities we offer OSDP-SC encryption, tamper switches, and EMI/RFI shielding.
In addition to Wiegand 26-bit and 34-bit which are most common we support OSDP or Open Supervised Device Protocol for encrypted communication, RS485 for multi-drop installations, and custom TTL/CMOS parallel interfaces for embedded controllers. We can also provide M12 circular connectors, terminal blocks, or flying leads for direct PCB mounting. Supply voltage options range from +5V DC to 12-24V DC which is typical for access control panels with reverse polarity and overcurrent protection.
Yes, all Keypado custom access control keypads are manufactured with RoHS-compliant materials including lead-free solder and halogen-free cables. They meet CE marking requirements for electromagnetic compatibility and low voltage directives. We can provide RoHS test reports and CE certificates upon request. For North American markets we also support FCC Part 15 Class B and UL 60950-1 certifications.
Yes, we frequently help customers replace discontinued or obsolete access control keypads by reverse-engineering existing designs. Provide us with samples, drawings, or even photographs of your current keypad and our engineering team will create a compatible replacement with improved durability or updated materials. We can match key layouts, mounting holes, cable lengths, and electrical specifications to ensure drop-in compatibility with your existing access control systems.
All custom access control keypads come with a standard 2-year warranty covering manufacturing defects and material failures. Extended warranties for 3-5 years are available for an additional fee. We maintain a 1% spare parts buffer for production orders to support field replacements. Our RMA process typically takes 5-7 business days for evaluation and replacement with root cause analysis reports provided for any quality issues.
Yes, we welcome customer factory audits to review our quality systems, production capabilities, and testing facilities. Due to international travel constraints we also offer virtual factory tours via video conference where you can observe production lines, testing equipment, and quality inspection processes in real time. We are ISO 9001:2015 certified and can provide audit reports from third-party inspectors including SGS and Bureau Veritas upon request.
